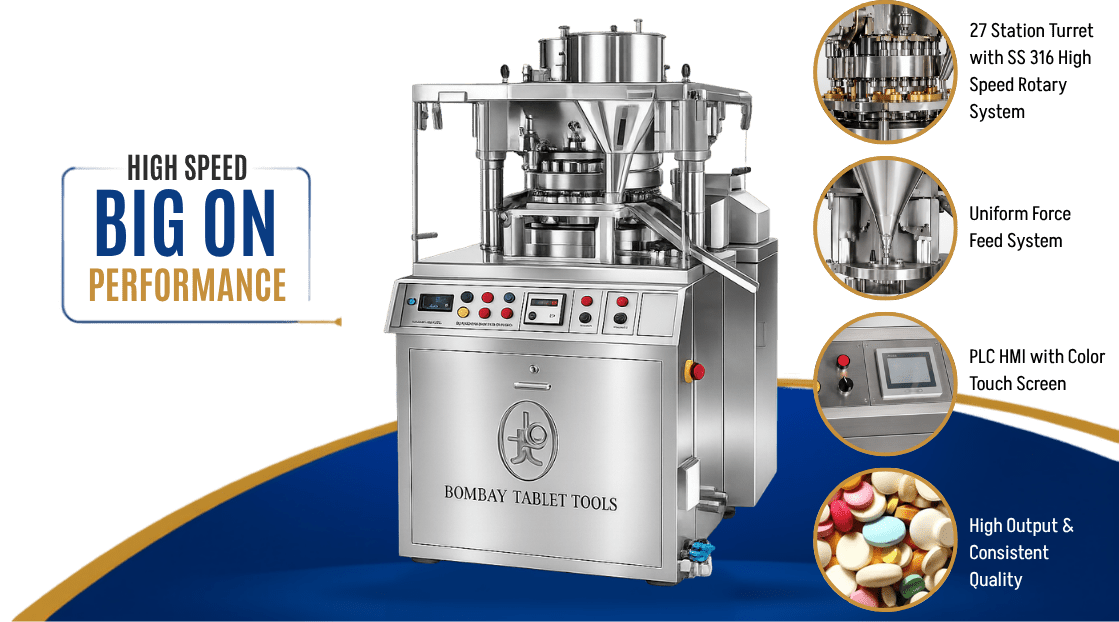

Engineered for high-speed tablet production with 27 Station Turret, High Speed Rotary System for superior tablet quality, accuracy, and consistent performance.

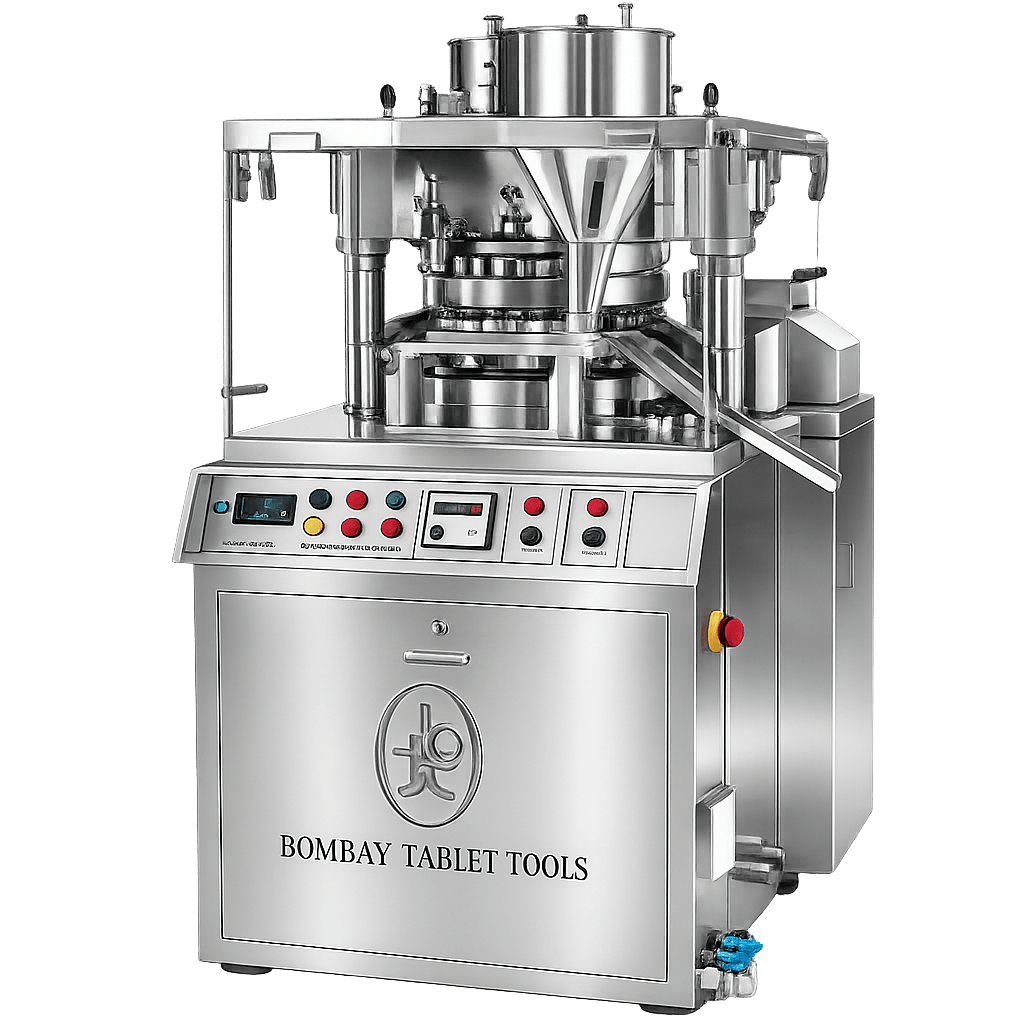

The 27 Station Rotary Tablet Compression Machine by Bombay Tablet Tools is a high-performance rotary tablet press machine engineered for efficient, precise, and consistent tablet manufacturing. Designed for pharmaceutical, nutraceutical, herbal, veterinary, confectionery, and other solid dosage applications, this 27 station tablet compression machine delivers reliable tablet weight, thickness, hardness, and uniformity for continuous production.

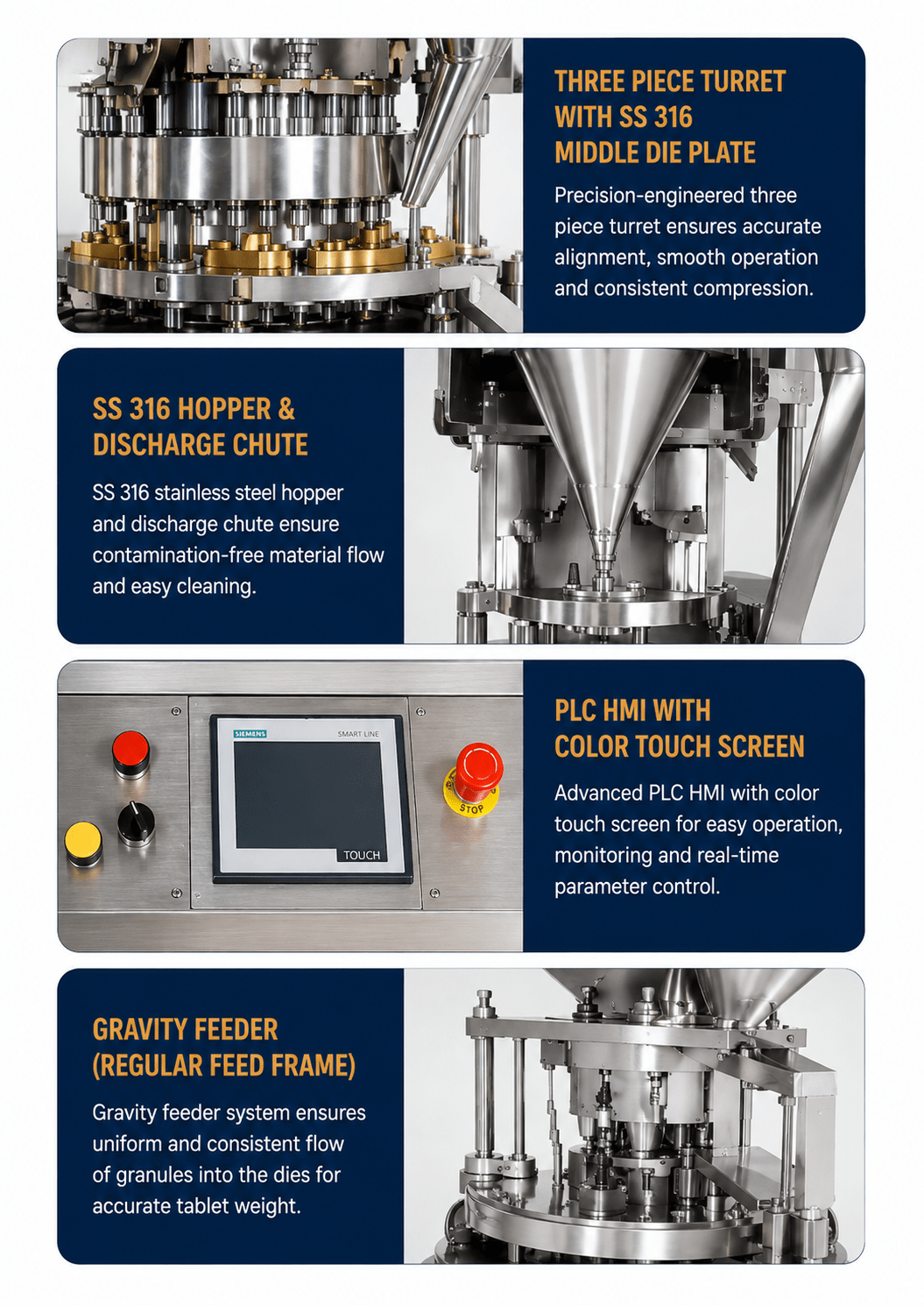

Built with robust stainless-steel construction and precision-engineered components, the machine combines high-speed tablet compression, force feeding, smooth operation, easy cleaning, and low maintenance. Its advanced rotary compression technology helps manufacturers achieve consistent output while maintaining production efficiency. Optional features such as PLC/HMI touch-screen controls, automatic lubrication, electromagnetic clutch, tablet sampling system, and electroless nickel-plated turret can further enhance machine performance and operational convenience.
Manufactured by Bombay Tablet Tools, our 27 Station Rotary Tablet Compression Machine is built with precision-engineered components and robust stainless-steel construction. It is designed for high-speed, continuous tablet production with excellent accuracy, reliability, and consistent output.
| Specification | Technical Details |
|---|---|
| Machine Type | 27 Station Rotary Tablet Compression Machine |
| Number of Stations | 27 |
| Type of Tooling | D Tooling |
| Maximum Output | 1,25,000 to 1,30,000 Tablets/Hour* |
| Maximum Operating Pressure | Up to 100 kN |
| Pre-Compression Pressure | Up to 10 kN |
| Maximum Tablet Diameter | 25 mm |
| Maximum Depth of Fill | 20 mm |
| Upper Punch Penetration | 3–8 mm |
| Turret | Three-Piece Turret with SS 316 Middle Die Plate |
| Product Contact Parts | SS 316 |
| Feeding System | Gravity Feeder / Force Feeder Option |
| Speed Control | AC Variable Frequency Drive |
| Main Motor | 5.0 HP |
| Feeder Motor | 0.5 HP |
| Total Power | 7.5 HP / 11.70 kW |
| Electrical Supply | 415V, 3 Phase, 50 Hz / 460V, 3 Phase, 60 Hz / 220V, 3 Phase, 60 Hz |
| Control System | PLC HMI with Colour Touch Screen – Optional |
| Machine Dimensions | 1980 (L) × 2210 (W) × 2290 (H) mm Approx. |
| Net Weight | Approx. 3,500 kg |
| Gross Weight | Approx. 3,850 kg |
| Construction | Robust Stainless-Steel Construction |
| Design Standard | GMP-Oriented Hygienic Design |
| Application | Pharmaceutical, Nutraceutical, Herbal, Veterinary & Confectionery Tablets |
Turret is a precision-engineered component of a rotary tablet compression machine that securely holds and positions the punches and dies during tablet compression. Manufactured by Bombay Tablet Tools, BTT Turrets are designed for high accuracy, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Upper Cam Set is a precision-engineered component of a rotary tablet compression machine that controls the movement and positioning of the punches during the compression cycle. Manufactured by Bombay Tablet Tools, BTT Upper Cam Sets are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Pressure Roller Assembly is a precision-engineered component of a rotary tablet compression machine that applies controlled compression force to the punches during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Pressure Roller Assemblies are designed for smooth operation, consistent compression, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Die Locking Screw is a precision-engineered component used to securely hold and lock the dies in position within a rotary tablet compression machine. Manufactured by Bombay Tablet Tools, BTT Die Locking Screws are designed for accurate die positioning, secure fastening, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Anti Rotation Spring Strip is a precision-engineered component designed to prevent unwanted rotation of the punches during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Anti Rotation Spring Strips ensure proper punch alignment, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Nylon Plug is a durable component used in rotary tablet compression machines for secure fitting, protection, and smooth functioning of machine assemblies. Manufactured by Bombay Tablet Tools, BTT Nylon Plugs are designed for reliable performance, dimensional accuracy, wear resistance, and long service life in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Worm is a precision-engineered drive component used in rotary tablet compression machines to transmit motion and torque between mechanical assemblies. Manufactured by Bombay Tablet Tools, BTT Worms are designed for accurate operation, smooth power transmission, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Lowering Cam is a precision-engineered component of a rotary tablet compression machine that guides the controlled downward movement of the punches during the tablet compression cycle. Manufactured by Bombay Tablet Tools, BTT Lowering Cams are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Feed Frame is a precision-engineered component of a rotary tablet compression machine that ensures the consistent and uniform feeding of granules into the dies during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Feed Frames are designed for smooth material flow, accurate die filling, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Upper Punch Lowering Track is a precision-engineered component of a rotary tablet compression machine that guides the controlled downward movement of the upper punches during the compression cycle. Manufactured by Bombay Tablet Tools, BTT Upper Punch Lowering Tracks are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Spring Plugs are precision-engineered components used in rotary tablet compression machines to securely retain and support springs within machine assemblies. Manufactured by Bombay Tablet Tools, BTT Spring Plugs are designed for accurate fitting, reliable operation, durability, and long service life in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Tunnel Type Lifting Track is a precision-engineered component of a rotary tablet compression machine that guides and controls the lifting movement of the punches during the tablet compression cycle. Manufactured by Bombay Tablet Tools, BTT Tunnel Type Lifting Tracks are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Oil Dripper is a precision-engineered component used in rotary tablet compression machines to deliver a controlled supply of lubricating oil to designated machine parts. Manufactured by Bombay Tablet Tools, BTT Oil Drippers are designed for consistent lubrication, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Drozzer Assembly is a precision-engineered component used in rotary tablet compression machines to support smooth and controlled machine operation. Manufactured by Bombay Tablet Tools, BTT Drozzer Assemblies are designed for accurate movement, reliable performance, durability, and long service life in pharmaceutical tablet manufacturing.
