A compact and efficient Semi Automatic Capsule Filling Machine designed for accurate dosing, consistent output, and easy operation. Ideal for pharmaceutical, nutraceutical, herbal, research, and small-to-medium scale capsule manufacturing applications.

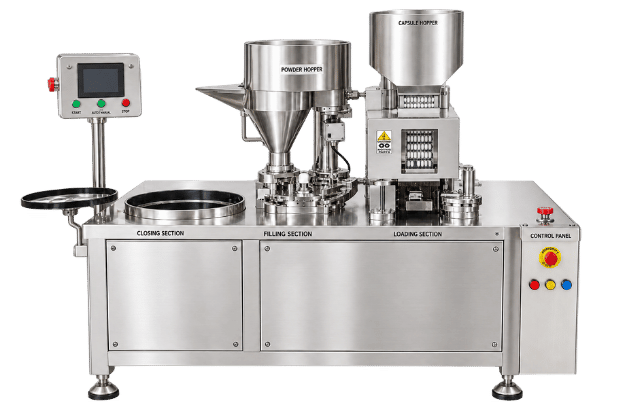

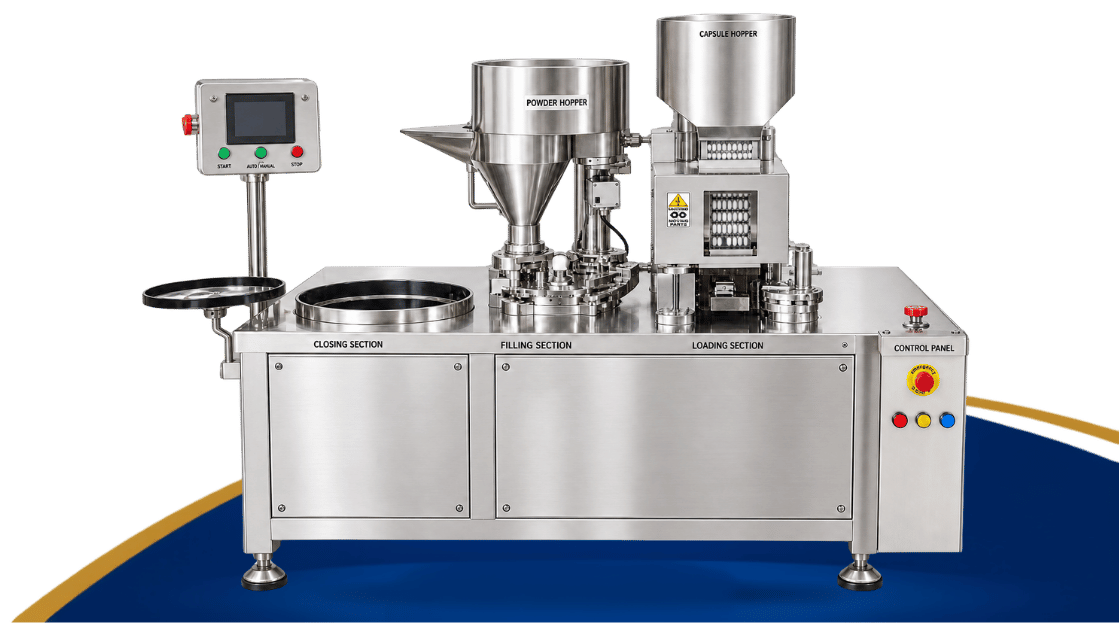

The Semi Automatic Capsule Filling Machine from Bombay Tablet Tools is a compact, robust, and reliable capsule filling solution developed for laboratories, R&D facilities, pilot plants, and small-to-medium scale pharmaceutical production.
The machine is designed for filling powders, granules, pellets, and other suitable free-flowing formulations into hard gelatin or suitable empty capsules. Its precision dosing arrangement helps maintain consistent filling weights while reducing material wastage.
The semi-automatic operating system provides a practical balance between automation and operator control. Capsule loading and other selected operations can be performed manually, while the dosing and filling mechanism ensures efficient and repeatable capsule production.
Manufactured using high-quality stainless-steel components, the machine offers excellent durability, hygiene, ease of cleaning, and low maintenance.
The Semi Automatic Capsule Filling Machine works through a controlled sequence of capsule positioning, separation, dosing, and closing.
Empty capsules are manually loaded into the capsule loading tray. The capsule handling mechanism separates the capsule cap from the capsule body and positions the bodies correctly for filling.
The formulation is then introduced into the dosing system. The dosing mechanism measures and transfers the required quantity of powder, granules, or pellets into the capsule body. Depending on the formulation and machine configuration, controlled tamping can be used to obtain the desired fill weight and density.
After filling, the capsule caps are repositioned and locked with their corresponding capsule bodies. The completed capsules are then removed from the machine for inspection and further processing.
Operating Sequence
Capsule Loading → Capsule Separation → Dosing → Filling / Tamping → Capsule Closing → Finished Capsule Collection
The semi-automatic process provides greater operator control while maintaining repeatable and efficient capsule filling.
| Specification | BTT-SACF-100 | BTT-SACF-200 | BTT-SACF-300 |
|---|---|---|---|
| Output Capacity | Up to 100 capsules/min | Up to 200 capsules/min | Up to 300 capsules/min |
| Applicable Capsule Size | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 |
| Dosing Type | Adjustable | Adjustable | Adjustable |
| Power Supply | 230 V, 50 Hz, Single Phase | 230 V, 50 Hz, Single Phase | 230 V, 50 Hz, Single Phase |
| Total Power | 1.0 kW | 1.0 kW | 1.2 kW |
| Net Weight | 120 kg | 150 kg | 180 kg |
| Machine Dimension (L × W × H) | 650 × 450 × 750 mm | 750 × 500 × 850 mm | 850 × 550 × 900 mm |
| Construction | SS 304 / SS 316 | SS 304 / SS 316 | SS 304 / SS 316 |
