Precision Tablet Coating Technology for Consistent, High-Quality Pharmaceutical Processing.
The Auto Coater is an advanced tablet coating machine designed for uniform application of film, sugar and functional coatings on pharmaceutical tablets. Its optimized coating pan, spray system and controlled drying arrangement provide consistent coating distribution, efficient drying and reliable batch-to-batch performance.

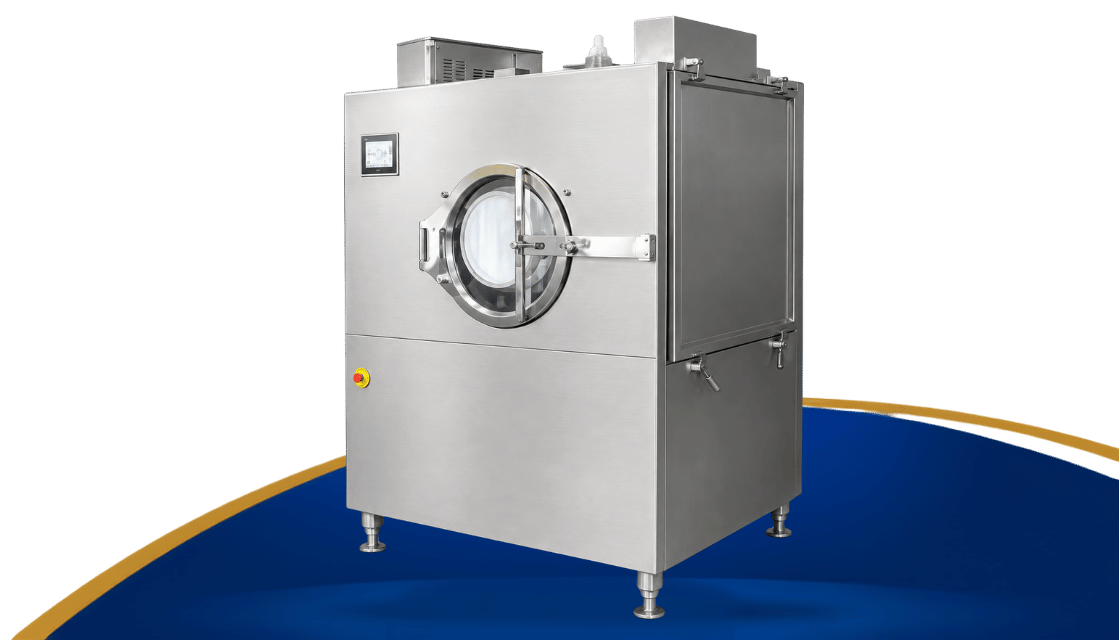

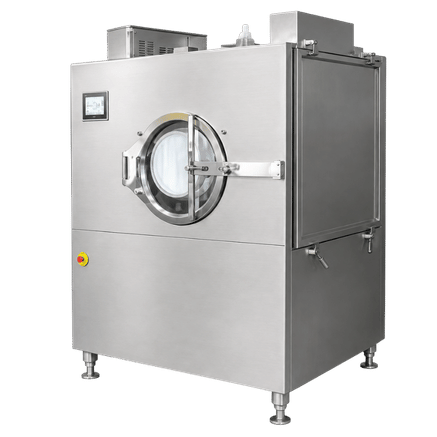

The Auto Coater, manufactured by Bombay Tablet Tools (BTT), is a high-performance pharmaceutical tablet coating machine designed for efficient and uniform coating of tablets.

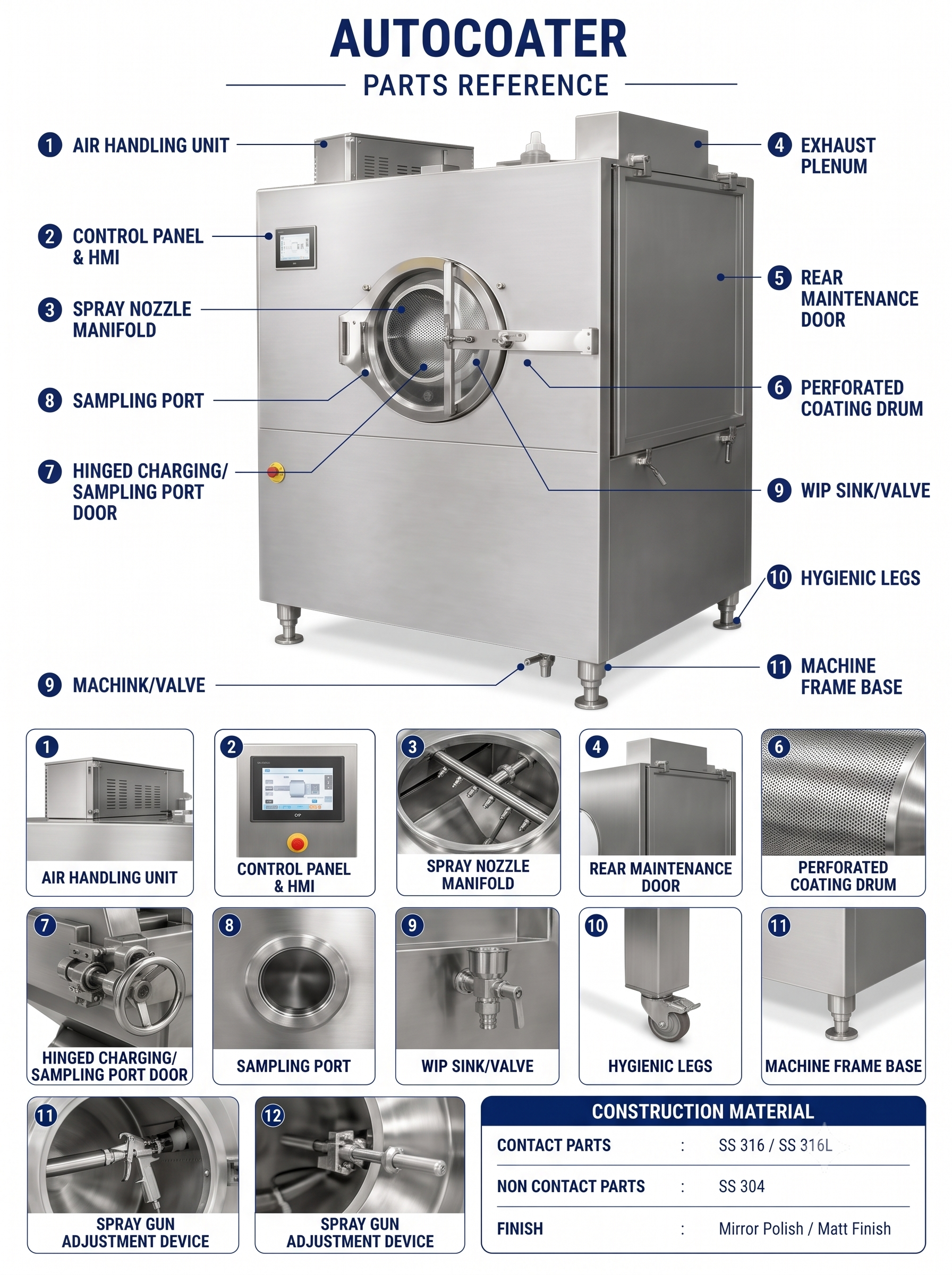

The machine combines a perforated coating pan, precision spray system, controlled hot-air supply and exhaust arrangement to achieve consistent coating quality while maintaining optimized process conditions.
Its automated operating system allows controlled adjustment of pan speed, spray rate, inlet air temperature, airflow and coating parameters, making it suitable for film coating, enteric coating and other pharmaceutical coating applications.
The Auto Coater is manufactured using high-quality stainless steel and can be customized according to batch capacity, tablet characteristics, coating material and production requirements. Its hygienic construction, smooth internal surfaces and accessible components support easy cleaning, inspection and maintenance.
The machine is suitable for pharmaceutical, nutraceutical and allied solid-dosage manufacturing applications and can be configured for modern GMP-oriented production environments.
| Specification | 12" | 18" | 24" | 36" | 48" | 60" | 66" |
|---|---|---|---|---|---|---|---|
| Pan Diameter | 300 mm | 400 mm | 300 mm | 900 mm | 1220 mm | 1520 mm | 1675 mm |
| Capacity* | 1 kg | 2–5 kg | 10–15 kg | 30–45 kg | 80–140 kg | 250–350 kg | 450–600 kg |
| Pan RPM | 3–18 | 3–18 | 3–18 | 3–18 | 3–18 | 3–18 | 3–18 |
| No. of Guns | 1 | 1 | 1 | 2 | 4 | 6 | 8 |
| Pan Motor | 1.0 HP | 1.5 HP | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP |
| Inlet Motor kW | 0.37 | 0.75 | 0.75 | 1.5 | 2.25 | 3.75 | 5.5 |
| Exhaust Motor kW | 0.75 | 0.5 | 2.25 | 3.75 | 11.25 | 18.75 | 22.5 |
| Max. Deg. Temp. | 80°C | 80°C | 80°C | 80°C | 100°C | 100°C | 100°C |
| Air Flow Rate m³/hr | 200 | 300–500 | 500–800 | 1000–1500 | 1500–2000 | 2500–3000 | 3500–4000 |
| Compressed Air | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
