Engineered for high-speed tablet production with double-sided compression for superior tablet quality, accuracy, and consistent performance.

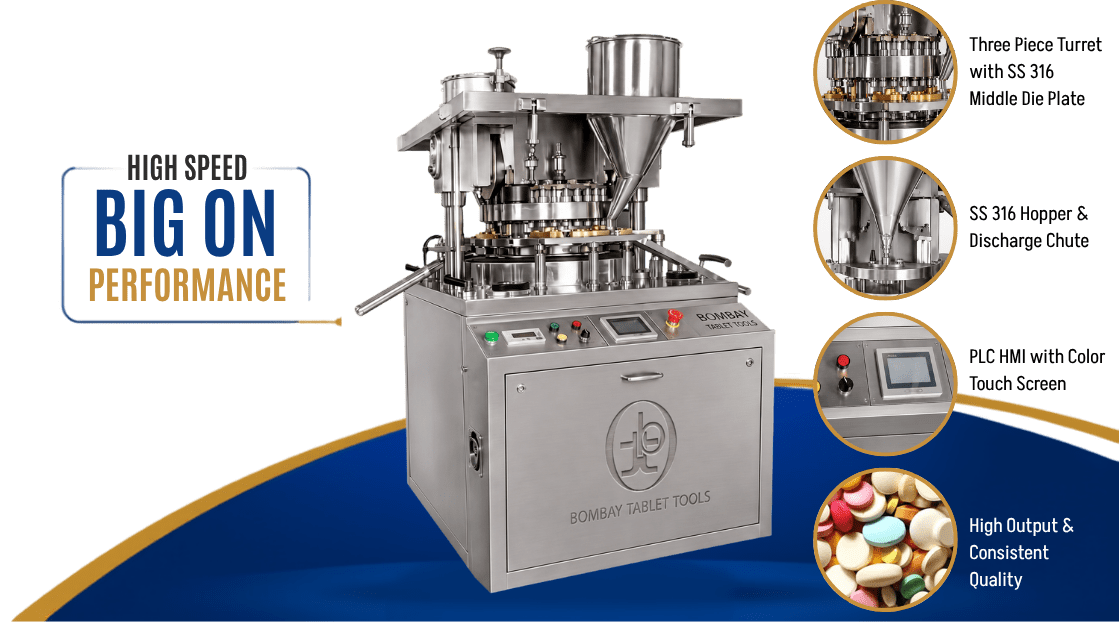

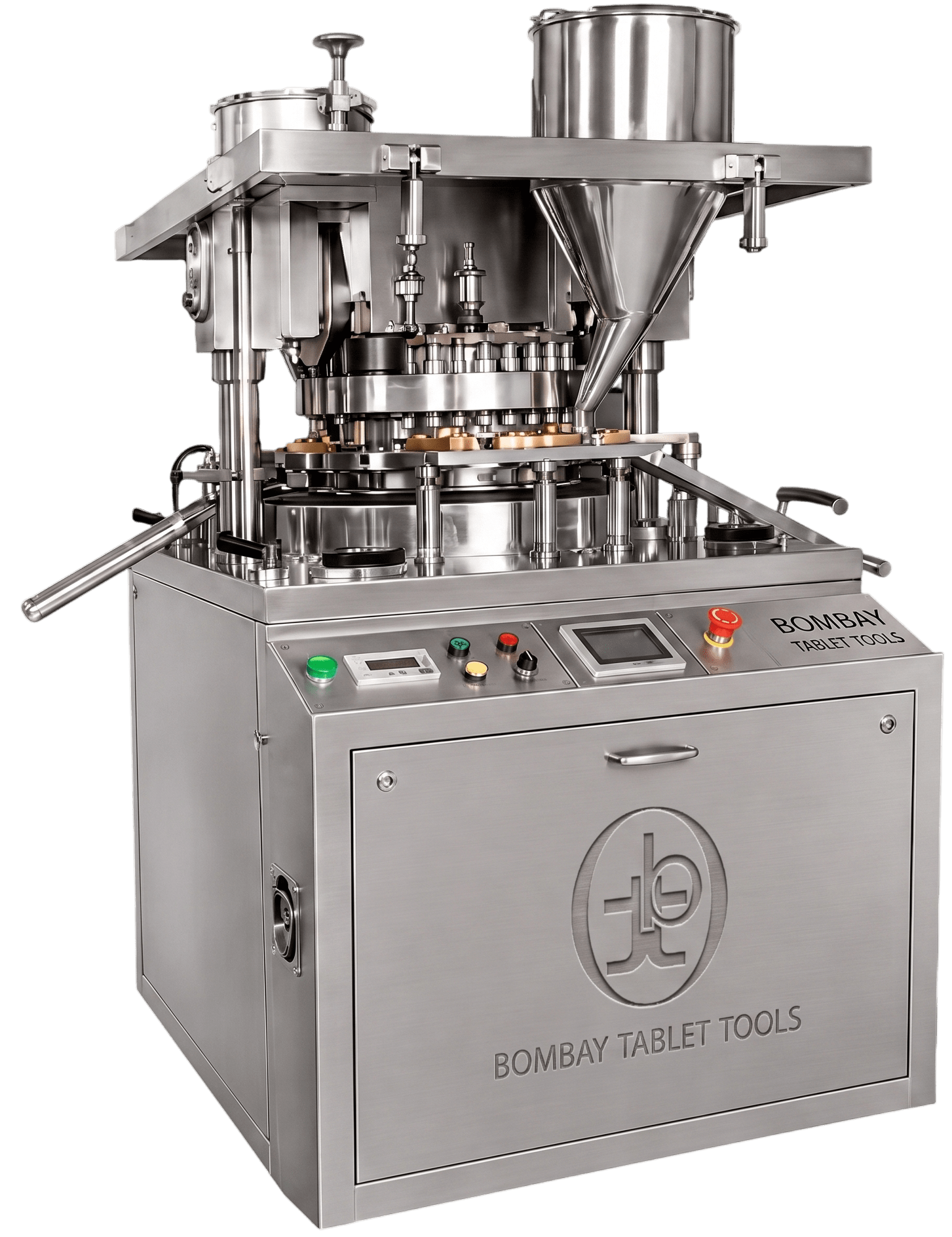

The Double Sided Rotary Tablet Press Machine by Bombay Tablet Tools is a high-speed tablet compression machine designed for efficient, large-scale pharmaceutical tablet production. Featuring double-sided compression technology, the machine delivers high output with consistent tablet weight, hardness, thickness, and quality. Available in BTT-27D, BTT-35B, and BTT-45BB models, it offers production capacity up to 216,000 tablets per hour, turret speeds up to 40 RPM, precision tooling, force feeding, and robust construction for continuous operation.
Designed for demanding pharmaceutical manufacturing environments, this Double Rotary Tablet Press incorporates SS 316 product-contact parts, a three-piece turret with SS 316 middle die plate, stainless-steel hopper and discharge chute, adjustable punch penetration, and a variable-frequency drive for smooth operation. Optional features include PLC HMI colour touchscreen, automatic lubrication, electromagnetic clutch, powder-level sensor, ELNP turret coating, and powder transfer system, making it suitable for pharmaceuticals, nutraceuticals, herbal products, chemicals, and veterinary tablet production.
| Specification | BTT-27D | BTT-35B | BTT-45BB |
|---|---|---|---|
| Number of Stations | 27 Stn. | 35 Stn. | 45 Stn. |
| Type of Tooling | D | B | BB |
| Output – Tablets/Hr. | 54,000–129,000 | 70,000–168,000 | 90,000–216,000 |
| Max. Operating Pressure | 10 Tons | 6.5 Tons | 6.5 Tons |
| Max. Tablet Diameter | 25 mm | 16 mm | 11 mm |
| Max. Depth of Fill | 20 mm | 17.5 mm | 17.5 mm |
| Upper Punch Penetration | 1.5–8 mm | 1.5–8 mm | 1.5–8 mm |
| Turret RPM | 40 RPM | 40 RPM | 40 RPM |
| Main Electric Motor | 5 HP, 3 Phase, 1440 RPM, 415 V, 50 Hz | 5 HP, 3 Phase, 1440 RPM, 415 V, 50 Hz | 5 HP, 3 Phase, 1440 RPM, 415 V, 50 Hz |
| Overall Dimensions | 1100 (L) × 1000 (W) × 1040 (H) mm (Approx.) | 1100 (L) × 1000 (W) × 1040 (H) mm (Approx.) | 1100 (L) × 1000 (W) × 1040 (H) mm (Approx.) |
| Net Weight | 1750 kg | 1750 kg | 1750 kg |
Turret is a precision-engineered component of a rotary tablet compression machine that securely holds and positions the punches and dies during tablet compression. Manufactured by Bombay Tablet Tools, BTT Turrets are designed for high accuracy, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Upper Cam Set is a precision-engineered component of a rotary tablet compression machine that controls the movement and positioning of the punches during the compression cycle. Manufactured by Bombay Tablet Tools, BTT Upper Cam Sets are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Pressure Roller Assembly is a precision-engineered component of a rotary tablet compression machine that applies controlled compression force to the punches during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Pressure Roller Assemblies are designed for smooth operation, consistent compression, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Die Locking Screw is a precision-engineered component used to securely hold and lock the dies in position within a rotary tablet compression machine. Manufactured by Bombay Tablet Tools, BTT Die Locking Screws are designed for accurate die positioning, secure fastening, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Anti Rotation Spring Strip is a precision-engineered component designed to prevent unwanted rotation of the punches during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Anti Rotation Spring Strips ensure proper punch alignment, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Nylon Plug is a durable component used in rotary tablet compression machines for secure fitting, protection, and smooth functioning of machine assemblies. Manufactured by Bombay Tablet Tools, BTT Nylon Plugs are designed for reliable performance, dimensional accuracy, wear resistance, and long service life in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Worm is a precision-engineered drive component used in rotary tablet compression machines to transmit motion and torque between mechanical assemblies. Manufactured by Bombay Tablet Tools, BTT Worms are designed for accurate operation, smooth power transmission, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Lowering Cam is a precision-engineered component of a rotary tablet compression machine that guides the controlled downward movement of the punches during the tablet compression cycle. Manufactured by Bombay Tablet Tools, BTT Lowering Cams are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Feed Frame is a precision-engineered component of a rotary tablet compression machine that ensures the consistent and uniform feeding of granules into the dies during the tablet compression process. Manufactured by Bombay Tablet Tools, BTT Feed Frames are designed for smooth material flow, accurate die filling, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Upper Punch Lowering Track is a precision-engineered component of a rotary tablet compression machine that guides the controlled downward movement of the upper punches during the compression cycle. Manufactured by Bombay Tablet Tools, BTT Upper Punch Lowering Tracks are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Spring Plugs are precision-engineered components used in rotary tablet compression machines to securely retain and support springs within machine assemblies. Manufactured by Bombay Tablet Tools, BTT Spring Plugs are designed for accurate fitting, reliable operation, durability, and long service life in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Tunnel Type Lifting Track is a precision-engineered component of a rotary tablet compression machine that guides and controls the lifting movement of the punches during the tablet compression cycle. Manufactured by Bombay Tablet Tools, BTT Tunnel Type Lifting Tracks are designed for accurate punch movement, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Oil Dripper is a precision-engineered component used in rotary tablet compression machines to deliver a controlled supply of lubricating oil to designated machine parts. Manufactured by Bombay Tablet Tools, BTT Oil Drippers are designed for consistent lubrication, smooth operation, durability, and reliable performance in pharmaceutical tablet manufacturing.
This will close in 0 seconds
Drozzer Assembly is a precision-engineered component used in rotary tablet compression machines to support smooth and controlled machine operation. Manufactured by Bombay Tablet Tools, BTT Drozzer Assemblies are designed for accurate movement, reliable performance, durability, and long service life in pharmaceutical tablet manufacturing.
