High-performance automatic capsule filling machine designed for accurate dosing, consistent output, and maximum filling efficiency. Ideal for pharmaceutical, nutraceutical, food, and allied industries.

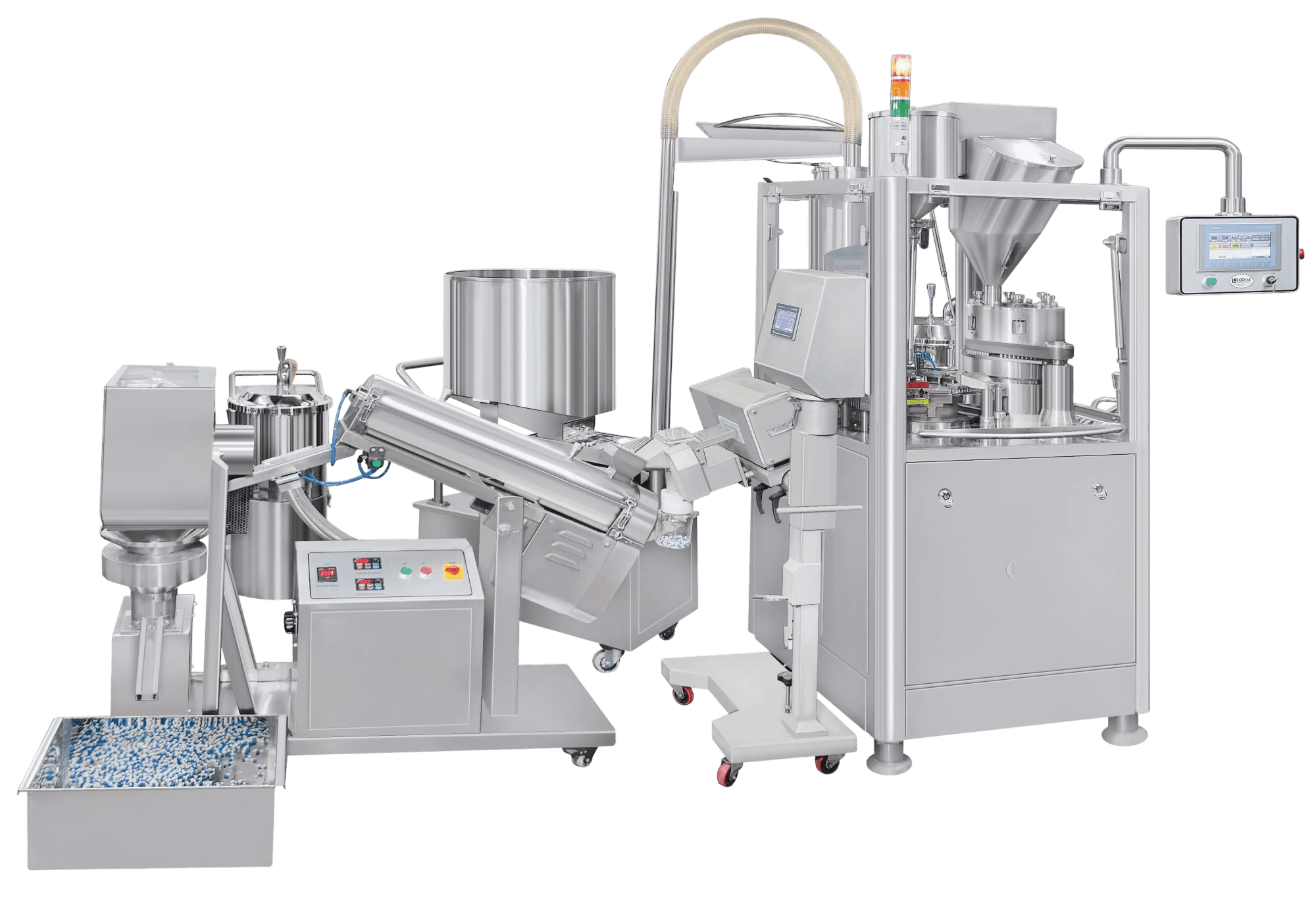

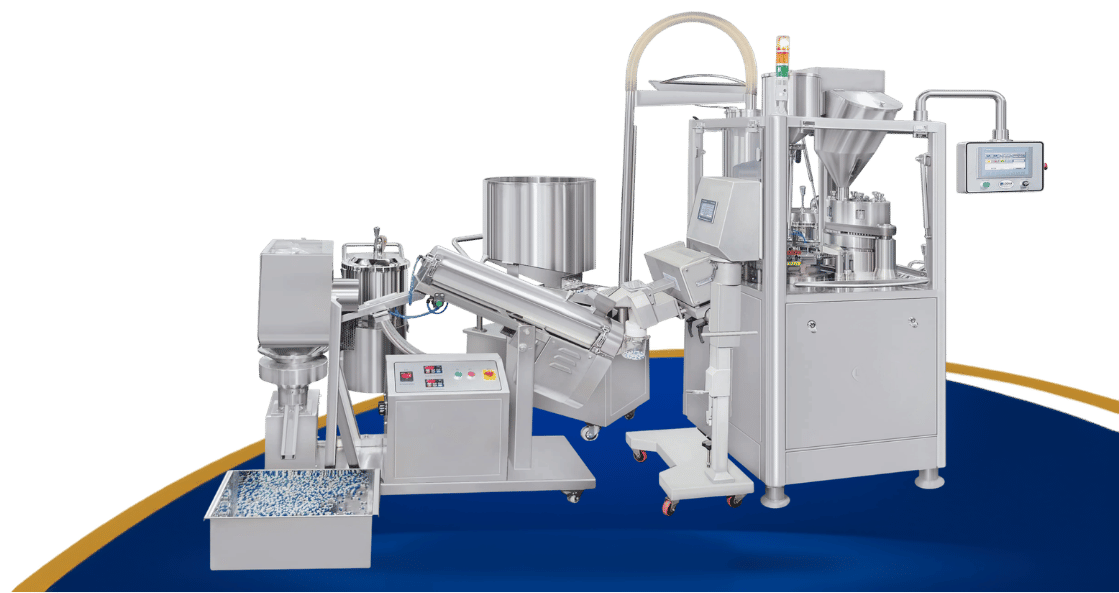

The Fully Automatic Capsule Filling Machine from Bombay Tablet Tools is an advanced capsule filling solution engineered for high-speed, accurate, and reliable capsule production. The machine is designed to deliver consistent filling performance while maintaining high standards of hygiene, precision, and operational efficiency.
Built with precision-engineered components and stainless-steel contact parts, the machine is suitable for pharmaceutical, nutraceutical, food, and other applications requiring uniform capsule filling.
The machine can be used for filling a wide range of materials, including powders, granules, pellets, and suitable formulations. Its automated operating system helps reduce manual intervention, improve production consistency, and minimize material wastage.
Bombay Tablet Tools combines robust construction, modern engineering, and cGMP-oriented design to provide a dependable capsule filling solution for modern manufacturing facilities.
The Fully Automatic Capsule Filling Machine operates through a coordinated sequence of capsule handling, opening, dosing, closing, and discharge operations.
Empty capsules are supplied to the machine and automatically oriented before being separated into their cap and body portions. The capsule bodies are then positioned accurately for the filling operation.
The selected formulation is fed into the dosing system, where a precision dosing mechanism measures and compresses the material according to the programmed filling requirements. The accurately measured dose is transferred into the capsule body.
After filling, the capsule cap is automatically repositioned and locked onto the filled capsule body. The finished capsules then pass through the discharge section, while improperly filled or defective capsules can be automatically rejected.
The complete process is controlled through the machine’s control panel, allowing the operator to monitor and adjust relevant operating parameters.
Operating Sequence
Capsule Feeding → Capsule Separation → Dosing → Filling → Capsule Closing → Inspection/Reject → Finished Capsule Discharge
This automated process minimizes manual handling, improves production consistency, and supports higher productivity.
| Specification | BTT-FACF-40 | BTT-FACF-60 | BTT-FACF-80 | BTT-FACF-98 |
|---|---|---|---|---|
| Output Capacity | Up to 40,000 capsules/hr | Up to 60,000 capsules/hr | Up to 80,000 capsules/hr | Up to 98,000 capsules/hr |
| Applicable Capsule Size | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 | 000, 00, 0, 1, 2, 3, 4, 5 |
| Power Supply | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase | 415 V, 50 Hz, 3 Phase |
| Total Power | 4.5 kW | 5.5 kW | 6.5 kW | 7.5 kW |
| Net Weight | 1000 kg | 1200 kg | 1400 kg | 1600 kg |
| Machine Dimension (L × W × H) | 1100 × 950 × 1850 mm | 1200 × 1000 × 1900 mm | 1350 × 1100 × 1950 mm | 1450 × 1200 × 2000 mm |
| Construction | SS 304 / SS 316 | SS 304 / SS 316 | SS 304 / SS 316 | SS 304 / SS 316 |
